Sports lighting
Padel Perimeter Linear System
- 2.596 kW reference system
- 175 lm/W nominal
- DALI Bluetooth
◇Sign in for your price
Ref: BGM-PDL-PER-2596View →
BGM launch catalogue
Professional LED products
Real product images and technical information from the supplied datasheets. Sign in to view the price assigned to your professional account.
Industrial lighting
Configurable UFO High Bay
- 160 / 200 / 240 W
- 3000 / 4000 / 5000 K
- 60° / 80° / 100°
◇Sign in for your price
Ref: BGM-UFO-240-3C3AView →
Industrial & sports
Linear Performance 320
- 240 / 320 W selectable
- DALI-2 control
- 3CCT
◇Sign in for your price
Ref: BGM-LIN-320-D2View →
Warehouses & production
Modular Linear 200
- 200 W nominal
- 2 optical modules
- 3CCT
◇Sign in for your price
Ref: BGM-LIN-200-M2View →
Outdoor & area lighting
UltraFlex Floodlight
- 20–300 W family
- 3CCT selectable
- IP65
◇Sign in for your price
Ref: BGM-FLD-3CCTView →
Home · Ceiling
Halo Night Ceiling
- 24 W + 6 W night light
- 5CCT selection
- Remote control
◇Sign in for your price
Ref: BGM-CLG-N24-6View →
Home · Ceiling
Multi-Function Sensor Panel
- 18 / 24 / 30 W
- 3000–6000 K
- 90–130 lm/W
◇Sign in for your price
Ref: BGM-PNL-MF30View →
Technical register
Specifications by product
Final configuration, certificates and photometry are confirmed with each quotation.
01Padel Perimeter Linear System
BGM-PDL-PER-2596+
A continuous low-glare linear lighting concept engineered around the full perimeter of a standard padel court.
Reference court20 × 10 m
System power2.596 kW reference configuration
Nominal efficacy175 lm/W
Colour temperature5000 K
Optics120° low-glare distribution
ControlDALI Bluetooth
Module lengthConfigurable up to 3000 mm
Input / frequency100–277 V AC · 50/60 Hz
Power factor / CRI>0.90 · CRI ≥80
ProtectionIP40 · IK08 · 4 kV surge
Operating range−20 °C to +50 °C
Lifetime50,000 h · L70 B50
Technical note. Reference targets include GR <22 and U₀ 0.82. Final glare, uniformity and illuminance must be verified by a project-specific DIALux calculation.
Request quotation →02Configurable UFO High Bay
BGM-UFO-240-3C3A+
One adaptable high-bay platform with field-selectable power, colour temperature and beam angle.
Selectable power160 / 200 / 240 W
Selectable CCT3000 / 4000 / 5000 K
Selectable beam60° / 80° / 100° without lens replacement
Maximum outputApprox. 37,800 lm
EfficacyUp to 170 lm/W
Configurations27 combinations
Dimming0–10 V
Input120–277 V AC
Power qualityPF ≥0.90 · THD ≤20%
Colour qualityCRI >80
ProtectionIP65
DimensionsØ360 × H155 mm
Operating range−40 °C to +50 °C
Lifetime / warranty50,000 h · 5 years
03Linear Performance 320
BGM-LIN-320-D2+
High-output linear luminaire with selectable power, DALI-2 control and wide asymmetric performance for demanding spaces.
Selectable power240 / 320 W
Length1190 mm
Optical modules4
ControlInventronics DALI-2
Selectable CCT3000 / 4000 / 5000 K
Measured power316.5 W at 320 W setting
Measured output54,979.6 lm
Measured efficacy173.73 lm/W
Power factor0.9911 measured
Maximum intensity27,085 cd
Beam C0/C18064°
Beam C90/C270130.2°
Technical note. Photometric values shown are based on the supplied 320 W test configuration.
Request quotation →04Modular Linear 200
BGM-LIN-200-M2+
A compact two-module linear platform designed for efficient industrial lighting and straightforward project integration.
Nominal power200 W
Optical modules2
Nominal efficacy170 lm/W
Calculated outputApprox. 34,000 lm
Selectable CCT3000 / 4000 / 5000 K
Dimming0–10 V
DriverInventronics
Final configurationElectrical, protection and dimensional data on request
Technical note. Protection rating, input voltage, dimensions and warranty are confirmed against the selected production configuration before quotation.
Request quotation →05UltraFlex Floodlight
BGM-FLD-3CCT+
A broad wattage family for flexible outdoor specification, with selectable colour temperature and robust wet-location protection.
Power family20 / 30 / 50 / 75 / 100 / 150 / 200 / 300 W
Selectable CCT3000 / 4000 / 6000 K
Efficacy options100 or 120 lm/W
Optics120°
Input100–270 V AC
Power factor>0.90
Colour qualityCRI 70+ or 80+
ProtectionIP65 · wet location
ConstructionDie-cast aluminium · PC lens
MountingHanging or wall mounting
Operating range−40 °C to +45 °C
Lifetime>25,000 h
Technical note. Output and dimensions vary by wattage. Final performance is confirmed for the selected model.
Request quotation →06Halo Night Ceiling
BGM-CLG-N24-6+
A slim ceiling luminaire combining adjustable white light with a dedicated warm night-light mode and wireless control.
Main / night power24 W + 6 W
Input120 V AC · 60 Hz
Diameter12 inch
Nominal efficacy100 lm/W
Main CCT range3000–6000 K · 5CCT
Night light2000 K
FinishesWhite or black
ControlWall switch and wireless remote
Remote functionsTimer, sleep, read, relax, dimming, CCT and favourite
GroupingGroup A/B · multiple lights and remotes
Weight1.45 lb
Wall controlUse with a non-dimming wall switch

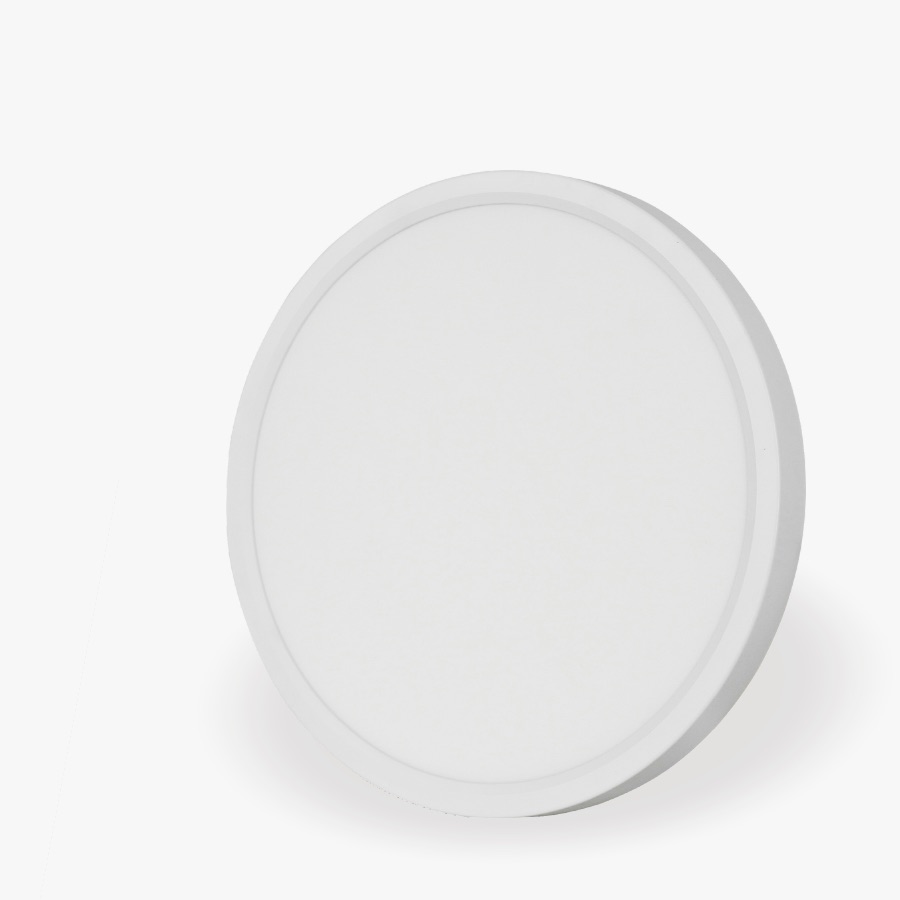

07Multi-Function Sensor Panel
BGM-PNL-MF30+
A round or square ultra-slim panel with adjustable power and CCT, optional microwave sensing, and flexible surface or recessed installation.
Power family18 / 24 / 30 W
Luminous output1800 / 2400 / 2800 lm
Colour temperature3000–6000 K · 3CCT switch
Nominal efficacy90–130 lm/W
SensorOptional radar / microwave / motion sensor
Sensor range2 / 4 / 8 m selectable
Sensor delay5 / 15 / 30 / 60 seconds or off
MountingSurface or recessed
Round sizesØ220 / Ø300 / Ø400 × H25 mm
Square sizes220 / 300 / 400 mm × H25 mm
Adjustable cut-out55–185 mm or 55–255 mm
Technical note. Sensor, power and mounting configurations vary by model. Final specification is confirmed for the selected project version.
Request quotation →Specification policy
Product images are extracted from the supplied technical documents and show the referenced product family. Specifications remain subject to final configuration, compliance review and project confirmation.
